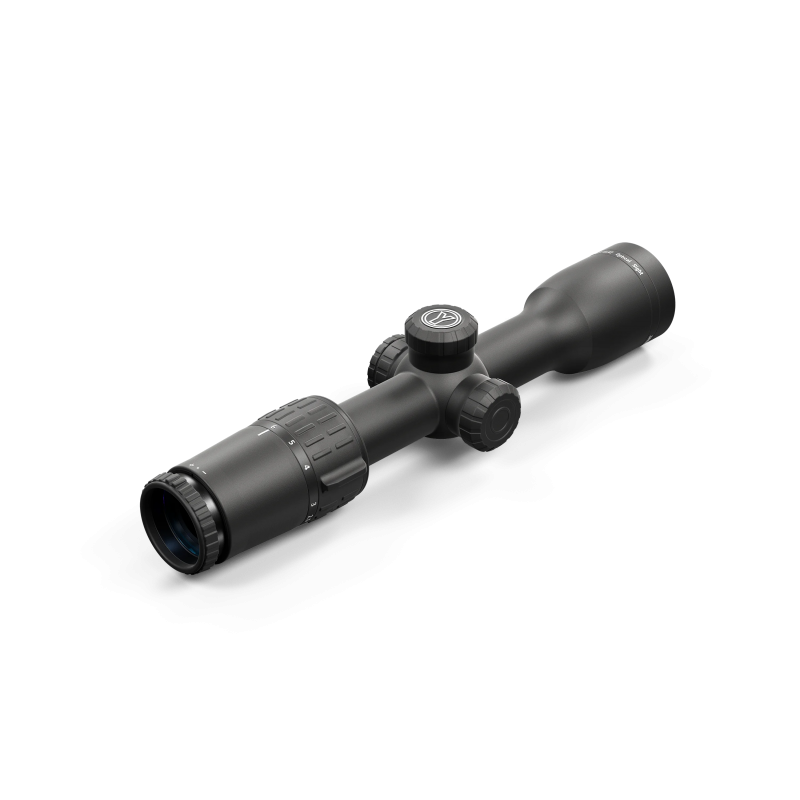

YUKON JAEGER 3-12X56 ABS X01I DM 30

YUKON JAEGER 3-12X56 ABS X01I DM 30

Waterproof

The Jaeger sights can be operated in precipitation of any intensity, e.g. heavy shower or snowfall (the unit has IPX7 degree of protection according to the IEC 60529).

Nitrogen-purged optical path

Nitrogen-filled optical channel protects inner optical parts and body of the sight against fogging, often caused by rapid temperature change.

Reinforced body

Jaeger sights are designed with the possibility of mounting on their objective lenses night vision and thermal clip on systems.

High shock resistance

Sights have high shock and vibration resistance. Jaeger of any modification can be installed on large-caliber rifled and smooth bore weapons and can be used with spring-piston air guns.

Wide field of view

Taking into account angular field of view Jaeger sights occupy a decent place among similar models represented on the market. Apart from a good visibility design of the eyepiece ensures a quick visual image capture when rifle is raised.

Resettable to zero turrets

Design of elevation and windage turrets allows almost instantaneously with one click reset turrets to zero after the sight was zeroed.

Illuminated Reticle

Reticles of Jaeger are situated in the second (rear) focal plane - regardless of selected magnification reticle stays thin and does not cover the target. The center of the reticles is illuminated. Illumination brightness adjustment wheel has intermediary "zero" steps which allows rapid switching off of the illumination as well as return to the previous position of brightness. Intensity of the illumination varies widely, there is a mode for using the sight with attached from the rear night vision device.

Optics

Magnification, x: 3-12
Lens diameter, mm: 56
Field of View, °: 6.9-1.7
Field of View, m@100m: 12-3
Eye Relief, mm: 90
Exit Pupil, mm: 16-3x / 5-12x
Diopter adjustment, dptr.: +/- 2,5

Reticle

Reticle type: X01I
Windage & Elevation, 1 click, mm@100m: 7,25 (1/4 MOA)
Max. windage/elevation adjustment range, mm@100m: 2030 (280 clicks) / 2030 (280 clicks)

Connections and Compatibilities

Mounting diameter, mm: 30
Shock-proofness, E0, joules (when used with rifled gun): 7000

Environmental Characteristics

Operating Temperature, °C: -30 ... +60
Level of Protection (acc. to IEC 60529): IPX7
Nitrogen Purged: yes

Weight & Size

Lens Material: Glass
Body Material: Aluminum Alloy
Length, mm: 295
Weight (without batteries), g: 590
